Category: Destacker and Transfer/Blanking Line
Sheet Thickness: 0.5-3.2mm
Max Sheet Width: 1800*1200mm
Min Sheet Width: 400*150mm
Production Material: Steel/Aluminum
Feeding Stroke(X-Axis): 0-1500mm
Clamping Stroke(Y-Axis): 0-300mm
Lifting Stroke(Z-Axis): 0-300mm

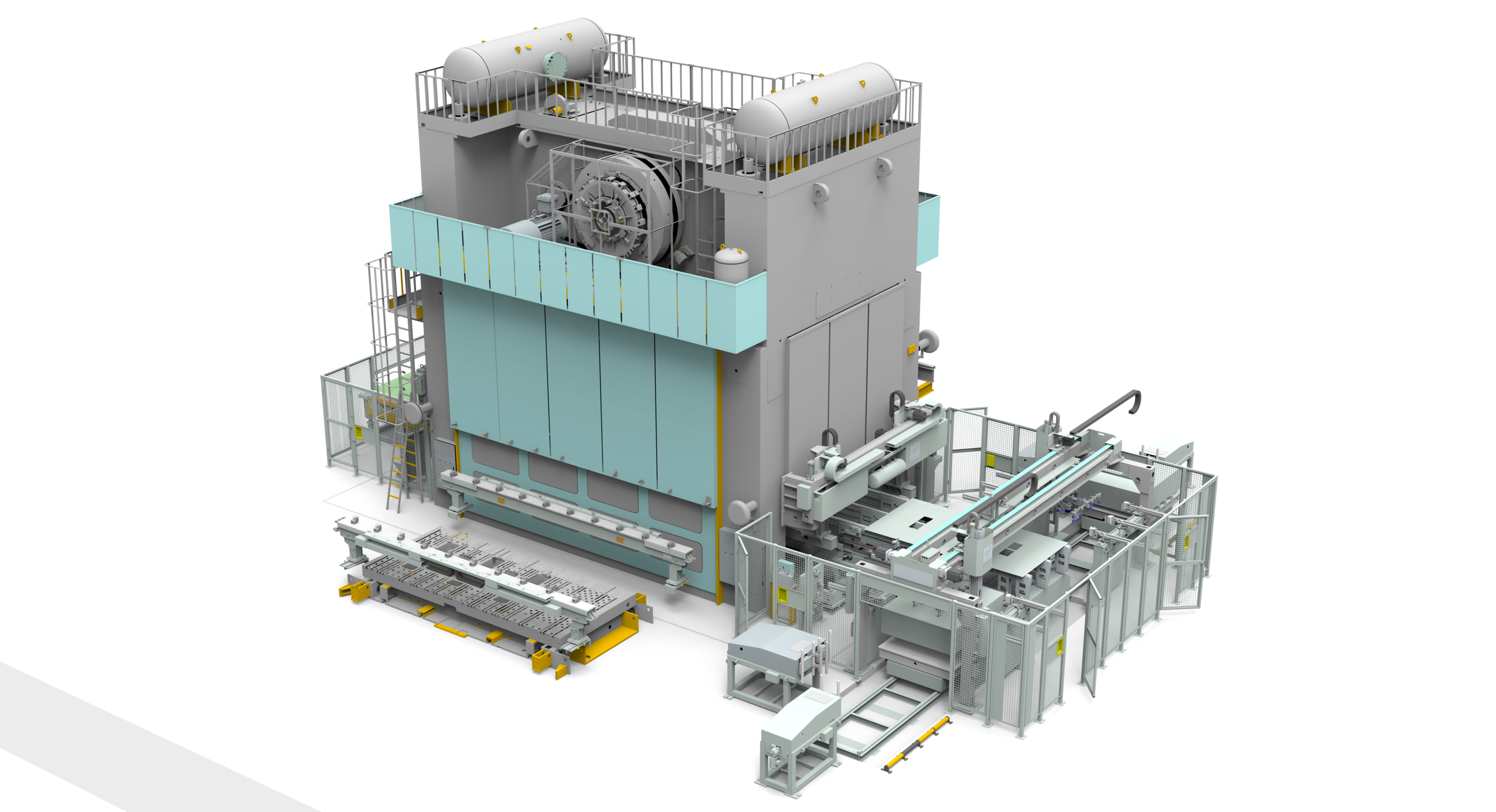

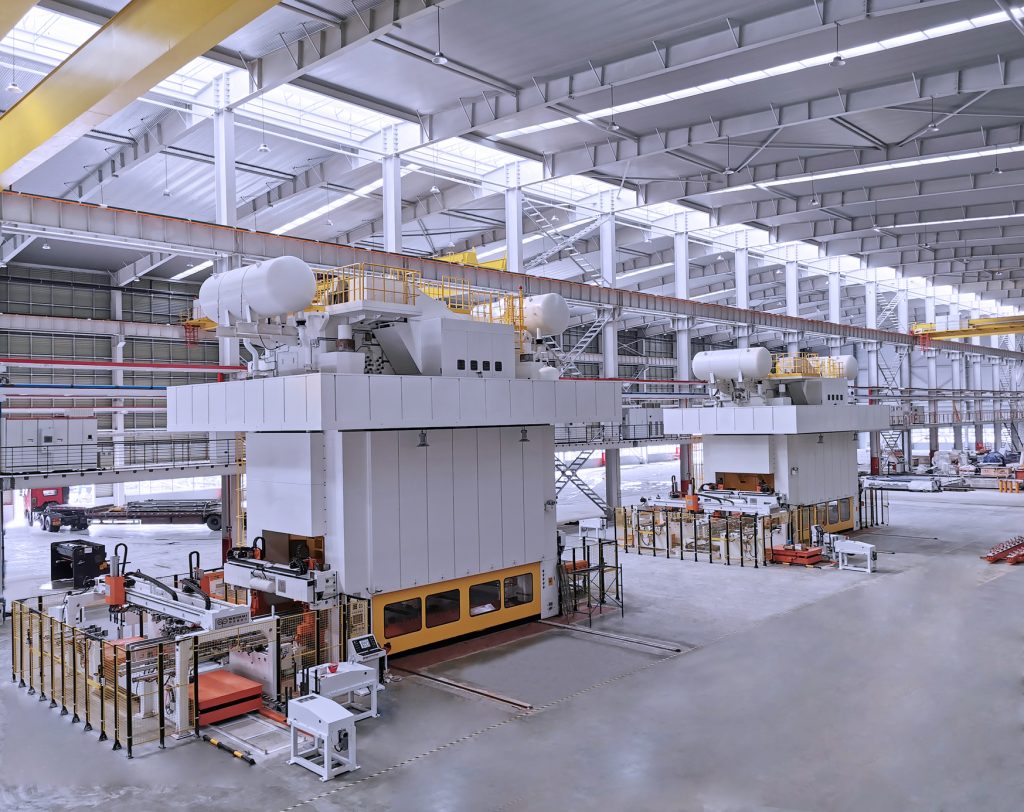

The destacker 3-axis transfer stamping line integrates high-precision adaptive positioning technology. It automatically identifies and memorizes parameters of material stacks of different shapes through bilateral stack positioners and rotary encoders. Combined with a magnetic sheet separator and a linkage mechanism of vacuum suction cups and cylinders, it achieves high-speed gripping, double-sheet detection, and dynamic anti-tipping of material sheets. The upper and lower belt mechanisms are equipped with multi-point tapping devices to precisely solve the centering and positioning challenges of irregular and double-piece material sheets. It completes sheet separation, suction, transfer, and step distance adjustment in a fully automated manner, featuring high efficiency, stability, and flexible adaptability, significantly reducing manual dependency and being suitable for complex destacking in multiple industries.
1. The destacking system features automatic stack separation, automatic adjustment and selection of suction cups for material picking, automatic double-sheet rejection, automatic tapping for centering, and automatic control of suction magnetism intensity levels.
2. Material stacks of different shapes can be automatically positioned via stack positioners on both sides of each trolley. It can automatically adjust positions, with parameters memorized and stored by number. The use of positioner greatly reduces manual operation time and enhances efficiency.
3. Magnetic sheet separators are installed on both sides, with automatic position adjustment and parameter memory. Secondary stack positioning mechanisms are set on the front and rear sides to prevent small stacks from tipping over.
4. Multiple groups of cylinders connected to vacuum suction cups are used to pick up separated material sheets from the trolley onto the upper magnetic belt mechanism. Suction cup positions are automatically adjusted, with parameters memorized and stored. The coordinated use of multiple mechanisms is suitable for high-speed destacking.
5. Tapping devices at different positions are installed on the upper and lower belt mechanisms. This arrangement resolves positioning accuracy issues for irregular and left-right double-piece material sheets.
Matching Press Tonnage | 1000T-3500T |
Max Sheet Width | 1800*1200mm |
Min Sheet Width | 400*150mm |
Sheet Thickness | 0.5-3.2mm |
Production Material | Steel/Aluminum |
Feeding Stroke(X-Axis) | 0-1500mm |
Clamping Stroke(Y-Axis) | 0-300mm |
Lifting Stroke(Z-Axis) | 0-300mm |
1. Strong water resit bottom in plywood.
2. Corner protect by foam and fixed by a protective film.
3. All covered by a strong and hard protective film.
4. Inside steel frame protector.
5. Plywood packing and steel strip outside fixed the box.
6. Finishing packing by normal container or frame container.
1. Equipment model selection, provide the technical parameters of the relevant equipment.
2. Progressing Solution Design: According to the customer’s product processing requirement, we can design a unique solution that supports higher manufacturing efficiency and better processing quality for the customer.
3. Customized Machine Design: According to the customer’s application, we may revise our machine according to the customer’s convenience and high production efficiency.
1. As a professional Automation machine manufacturer and supplier, RUIHUI will supply the all machine with training video and user’s manual in English for installation, operation, maintenance, and trouble-shooting, and shall give technical guides by remote, such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problems of installation, operation or adjusting.
2. You can come to our factory for training. We will offer professional guidance and direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools, and a testing facility. Training Time: 3~5 days.
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses, and accommodation to us during the business trip and service period before their dispatch.
As a top Automation Machine brand in the world, RUIHUI promise:
1. 1 year for the whole Ruihui machine free warranty.
2. Long life-time maintenance, the after-sale department will offer 24/7 English online support.
3. We provide machine-related parts service
4. After the warranty period expired, the Ruihui buyer only needs to pay the actual maintenance cost.
5. Certificate support:
All the machines can be shipped worldwide by sea, air, or express logistics via DHL, FedEx, and UPS. You are welcome to get a free quotation by filling up the form with your name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

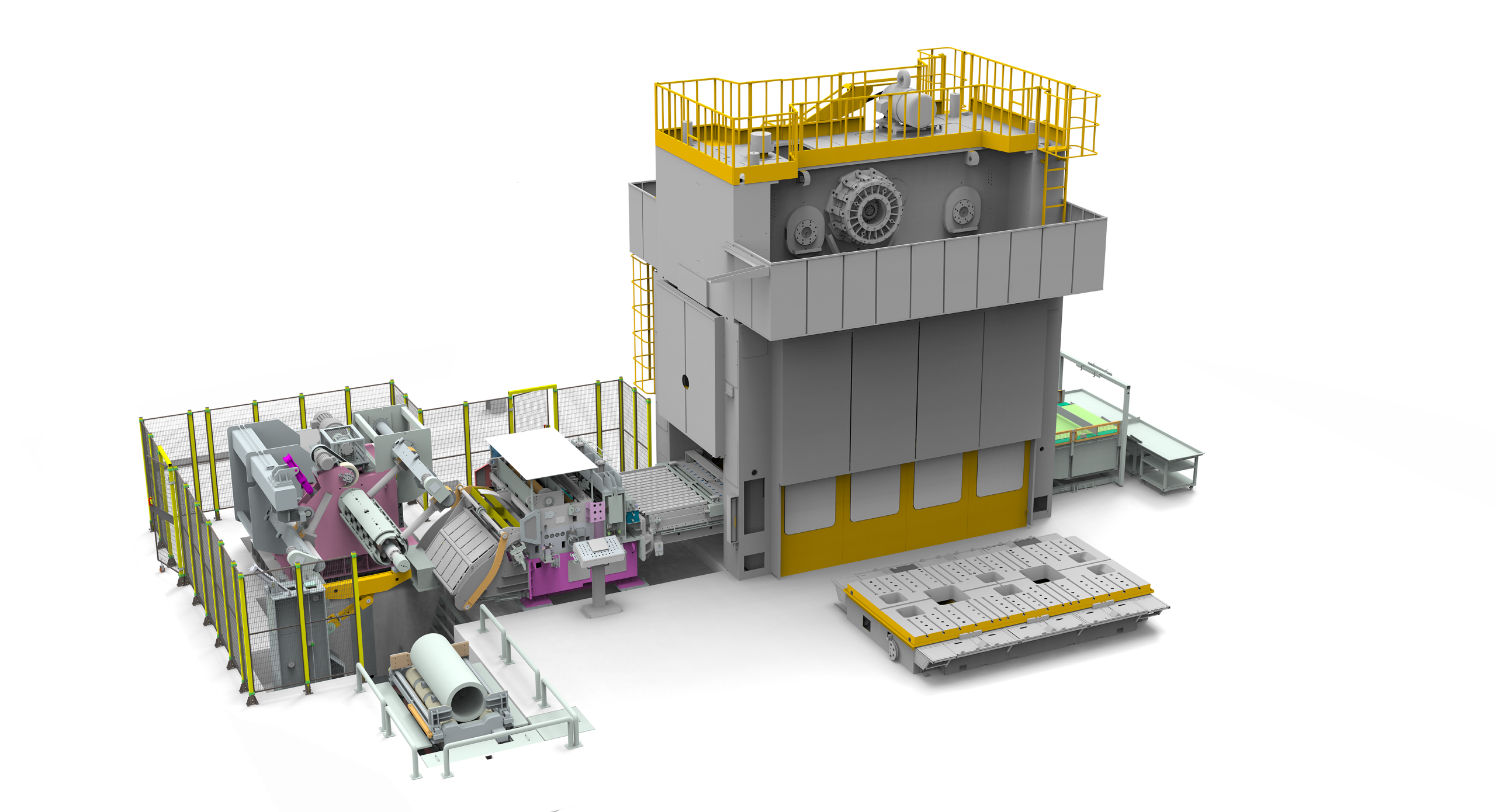

Fully Automatic High-Strength Continuous Stamping Line Category: Blanking Line Coil Width: 200-1600mm Coil Thickness: 0.6-6.0mm Line Speed: 30m/min Max Production TAKT: 60SPM Max Material Strength:

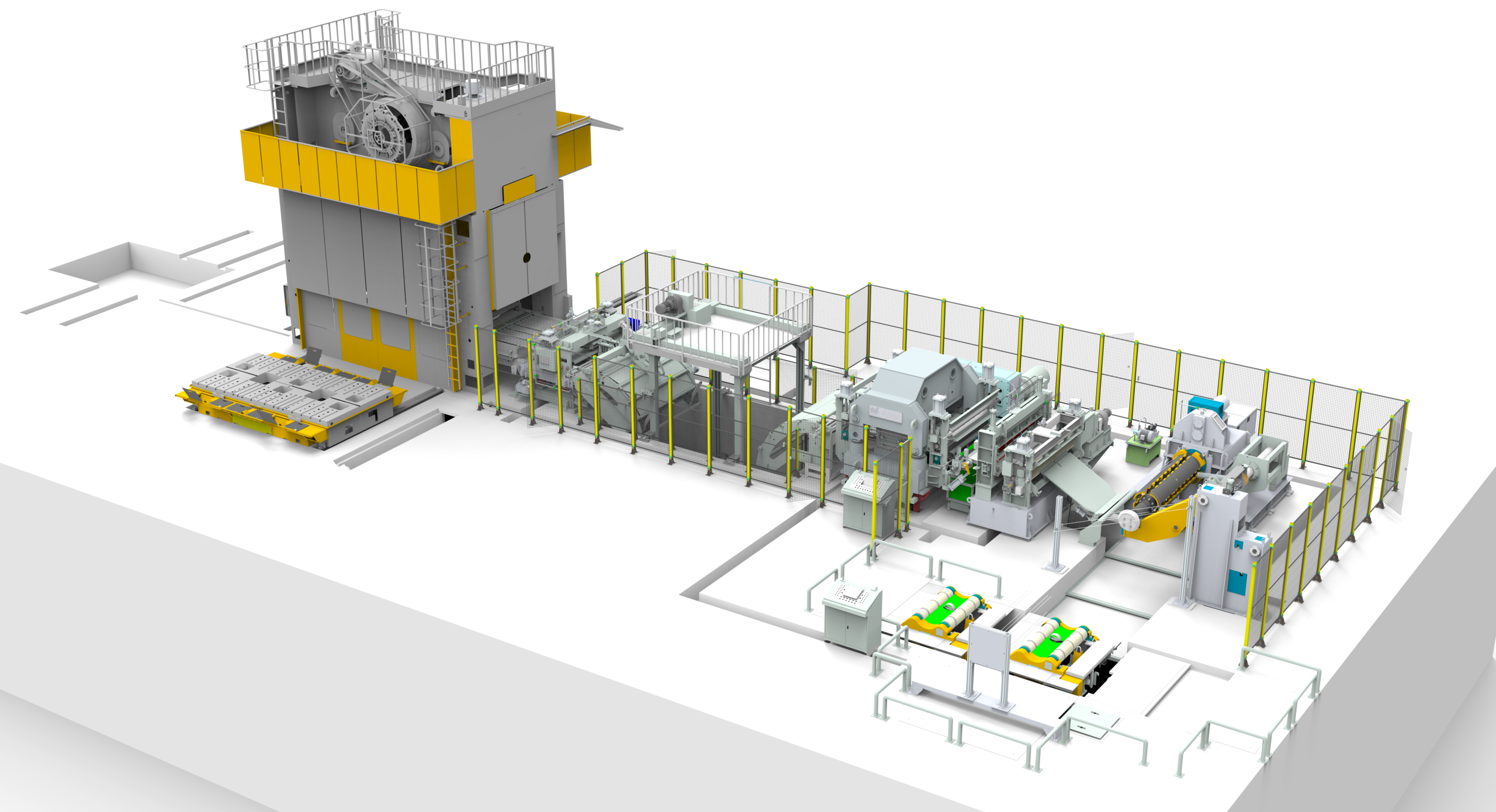

High-Speed Precision Blanking Line Category: Blanking Line Brand: RUIHUI Coil OD: Ф800-Ф1800mm Coil ID: Ф508/Ф610(One-time Expansion) Coil Width: 300-1850mm Coil Thickness: 0.5-3.2mm Max Material Strength:

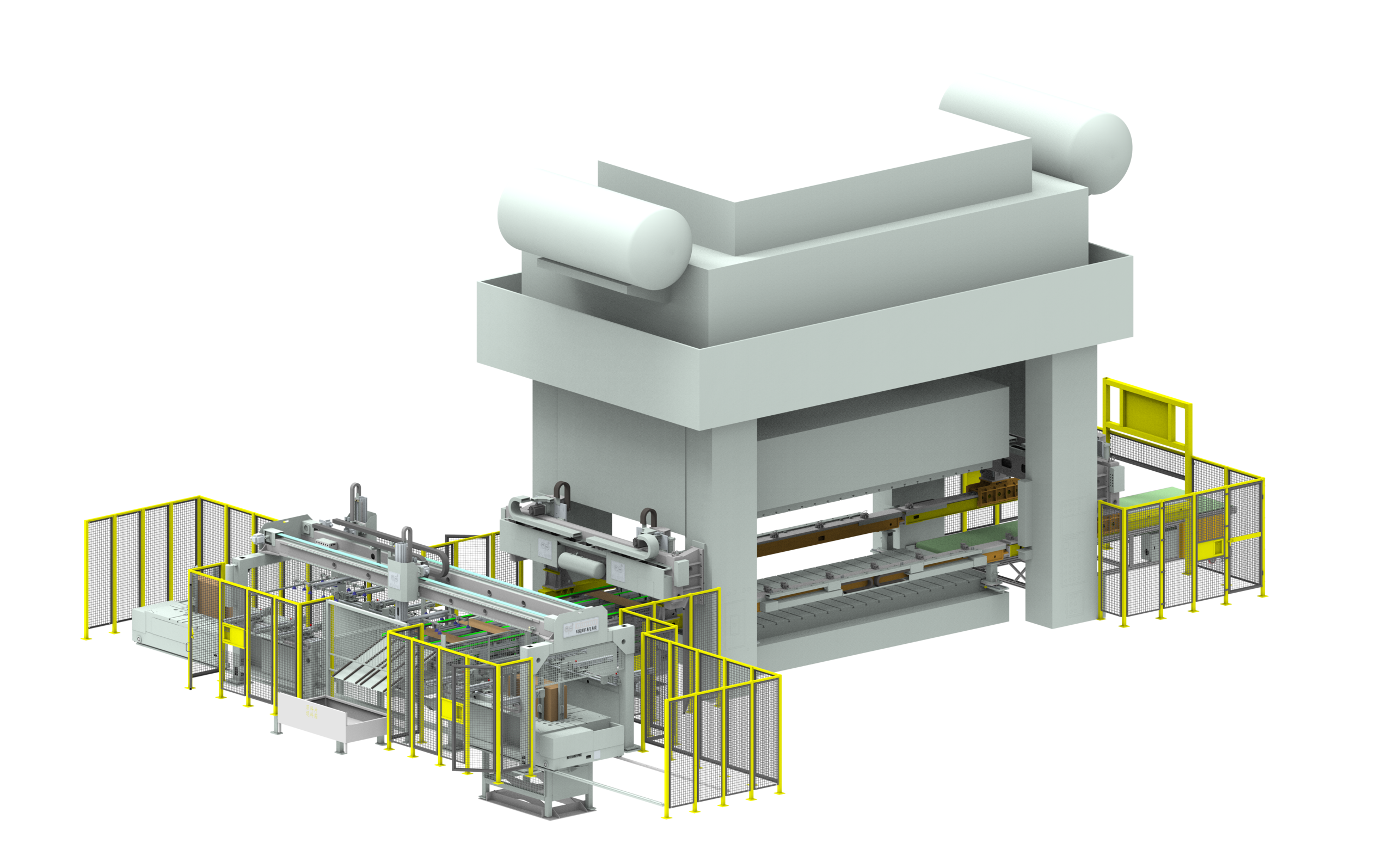

Truss Destacker 3-Axis Transfer Stamping Line Category: Destacker and Transfer/Blanking Line Max Sheet Width: 1800*1200mm Min Sheet Width: 400*150mm Sheet Thickness: 0.5-3.2mm Production Material: Steel/Aluminum

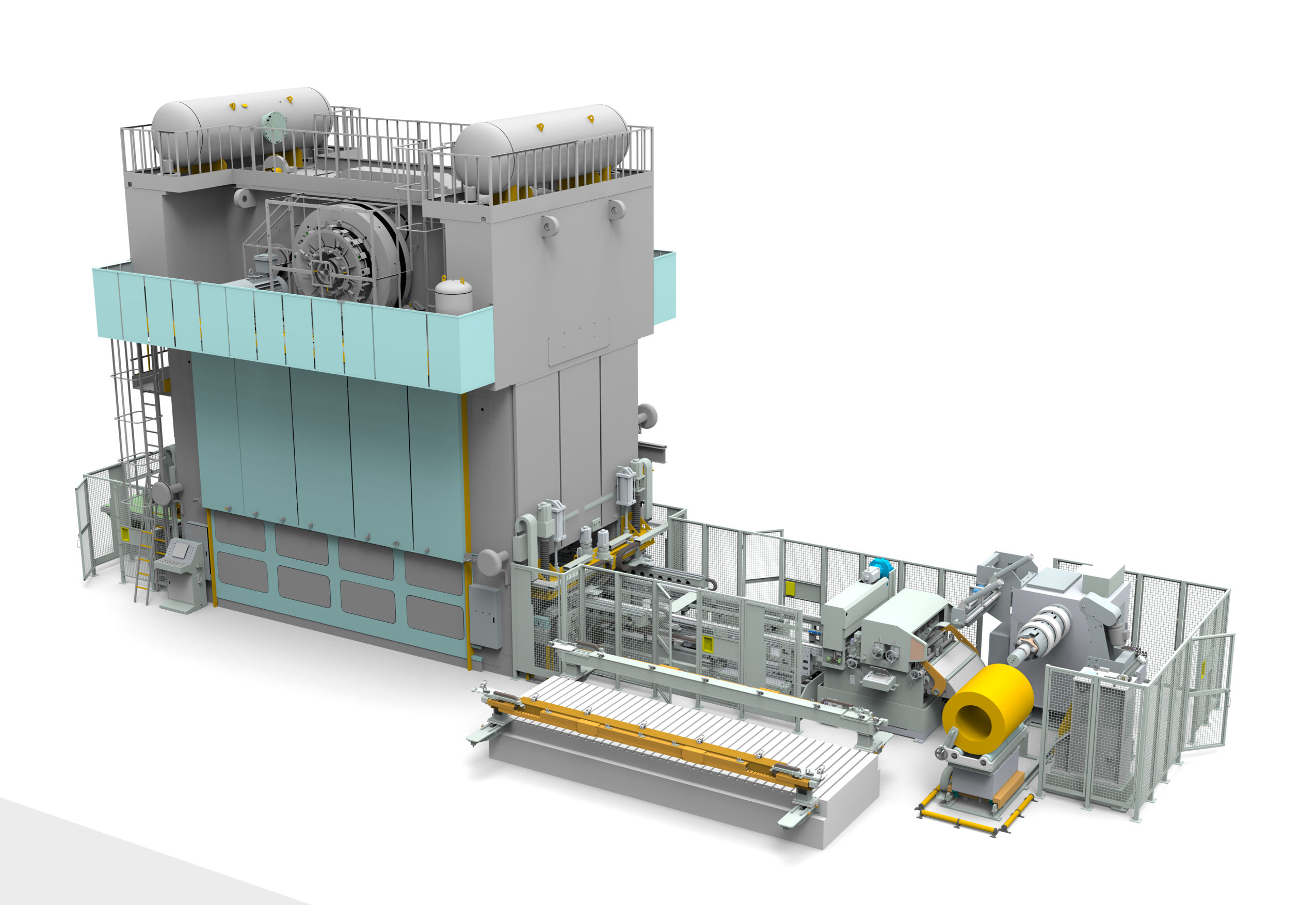

Fully Automatic 3-Axis Transfer Stamping Line Category: Transfer/Blanking Line Brand: RUIHUI Coil Width: 200-1300mm Coil Thickness: 0.6-6.0mm Matching Press Tonnage: 1000T-3500T Line Speed: 16m/min Max
