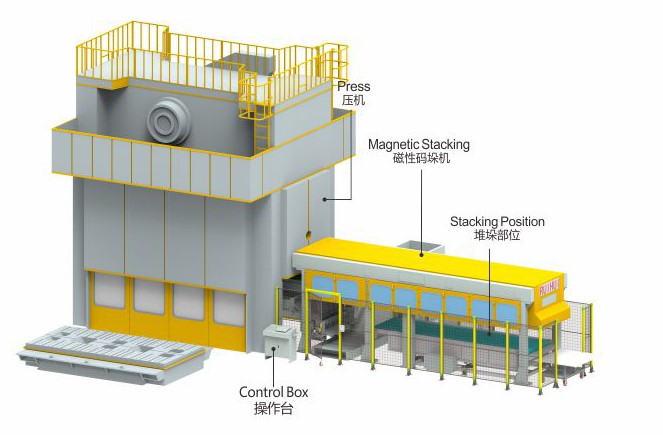

The magnetic stacking machine will transport the material sheets, after being sheared by the blanking die, to the stacking area and stacking position via a magnetic conveyor belt. Once the flat sheets are cross-cut into pieces of different fixed lengths, the magnetic stacking system will adsorb and convey them to the designated position through the magnetic conveyor belt. Then, the control system will neutralize the magnetism of the permanent magnets at this location, causing the material sheets to fall onto the stacking trolley, where they are aligned and stacked by patting.
1. The stacking trolleys offer configurations including single-station with dual trolleys and dual-station with four trolleys.
2. With automatic switching, the stacking speed is extremely fast.
3. This magnetic stacking system is suitable for blanking and stacking both inner and outer panels.
Stack Length | 300-4500mm |
Stack Width | 300-2050mm |
Stack Height | 750mm（Including Tray） |
Stack Weight | 10T |
1. Strong water resit bottom in plywood.
2. Corner protect by foam and fixed by a protective film.
3. All covered by a strong and hard protective film.
4. Inside steel frame protector.
5. Plywood packing and steel strip outside fixed the box.
6. Finishing packing by normal container or frame container.
1. Equipment model selection, provide the technical parameters of the relevant equipment.
2. Progressing Solution Design: According to the customer’s product processing requirement, we can design a unique solution that supports higher manufacturing efficiency and better processing quality for the customer.
3. Customized Machine Design: According to the customer’s application, we may revise our machine according to the customer’s convenience and high production efficiency.
1. As a professional Automation machine manufacturer and supplier, RUIHUI will supply the all machine with training video and user’s manual in English for installation, operation, maintenance, and trouble-shooting, and shall give technical guides by remote, such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problems of installation, operation or adjusting.
2. You can come to our factory for training. We will offer professional guidance and direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools, and a testing facility. Training Time: 3~5 days.
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses, and accommodation to us during the business trip and service period before their dispatch.
As a top Automation Machine brand in the world, RUIHUI promise:
1. 1 year for the whole Ruihui machine free warranty.
2. Long life-time maintenance, the after-sale department will offer 24/7 English online support.
3. We provide machine-related parts service
4. After the warranty period expired, the Ruihui buyer only needs to pay the actual maintenance cost.
5. Certificate support:
All the machines can be shipped worldwide by sea, air, or express logistics via DHL, FedEx, and UPS. You are welcome to get a free quotation by filling up the form with your name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
